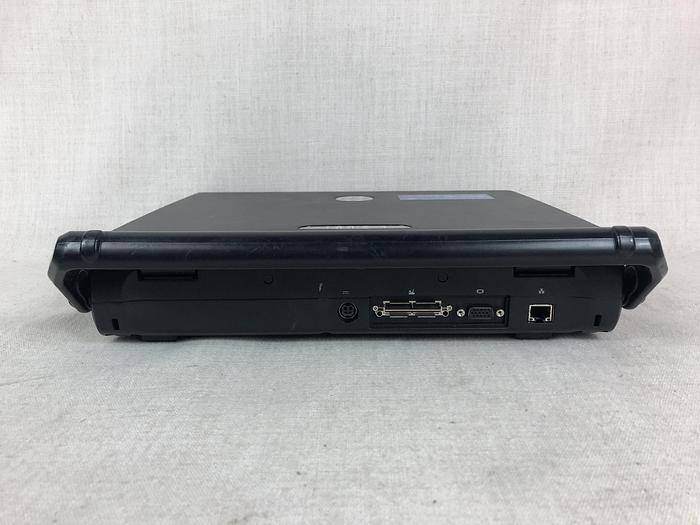

2015 GE LOGIQ-E-BT12

Laptop-Style Compact Ultrasound with three (3) transducers: GE 12L-RS Linear Ultrasound Transducer, GE 4C-RS Ultrasound Probe/Transducer, GE 9L-RS Linear Ultrasound Transducer

Applications

• Abdominal

• Cardiac

• Gynecology

• Intraoperative • Musculoskeletal • Obstetrical

• Nerve Block

• Pediatric and Neonatal

• Small Parts and Superficial • Urological

• Vascular

Scanning Methods

• Phased Array Sector • Electronic Convex

• Electronic Linear

Transducer Types

• Convex Array

• Microconvex Array • Linear Array

• Phased Array

Operating Modes

• B-Mode
• M-Mode
• Anatomical M-Mode
• Color Flow Mode (CFM)
• Power Doppler Imaging (PDI)
• Continuous Wave Doppler (CWD)
• Pulse Wave Doppler (PWD)
• Tissue Doppler Imaging (TDI assess direction and velocity of myocardial motion)
• Standard Features
• • High Resolution 15 inch Color LCD
• • Over 1,000 frames or over 60 seconds CINE Memory (64 MB) depend on FOV, Scanning Lines etc.
• • 160 GB Hard Drive
• • External DVD R/W storage
• • Loop storage—from live scanning and from memory
• • Automatic Optimization
• – Auto Tissue Optimization: ATO
• – Auto Color Flow Optimization: ACO
• – Auto Spectrum Optimization: ASO
• – Auto Clarity Suite (Auto Focus and Auto Frequency)
• • ACE* (Adaptive Color Enhancement) 2

• Raw Data Processing

• Patient Information Database

• Image Archive 97.5 GB on Hard Drive

• Customizable User Interface

• Full M&A Calculation Package with Real Time Auto Doppler Calculations

• Vascular Calcs

• Cardiac Calcs

• OB Calcs and Tables

• Fetal Trending

• Multi Gestational Calcs

• Musculoskeletal and Hip Dysplasia Calcs

• Gynecological Calcs • Urological Calcs

• Renal Calcs

• Report Package

Software Options

• Easy3D
• LOGIQview
• B-Steer + Needle Recognition
• CrossXBeam*
• CMM and AMM
• Stress Echo
• TEE Probe Support
• TDI
• IMT
• Touch Mode
• DICOM 3.0 Connectivity
• eSmart Trainer provides modules showing basic scanning techniques, with graphics of probe position, anatomy and example clinical image
• FlowQA(ColorandPDIQuantification) helps you evaluate the amount of blood flow within a region of interest, to assist with diagnosis and monitoring.
• Patient Follow-up Tool when you monitor your patient’s condition, therapy or progress over time - LOGIQ e automatically recalls all of the imaging parameters, comments and body patterns to be identical to your previous exam. It even provides an alert if you use a different transducer than last time. Works in B-Mode, Color Mode and PDI.
• Hardware Options
• • CWD
• • USB ECG (AHA/IEC)
• • 1.5T Hard Drive
• • SATA to USB convertor
• Height:
• Width:
• Depth:

70 mm (2.75 in) console only 100 mm (3.94 in) with handle

340 mm (13.38 in)

346 mm (11.63 in) console only 372 mm (14.4 in) with handle

• Weight with Battery:

approx. 5.2 Kg (11.5 lbs).

Battery Power

• Lithium Ion Battery (standard) • Scan time with battery 1 hour

Electrical Power

• Voltage: 100–240 VAC

• Frequency: 50/60 Hz

• Power: Max. 130 VA with Peripherals

Console Design

• Laptop Style
• Integrated HDD (160 GB)
• CPU
• – U7500 Core 2 Duo 1.06 G
• Wired, wireless LAN Support
• – For DICOM communication
• – For Network Storage (Image
• store to PC without DICOM system)
• USB Ports (2)
• USB ECG (AHA/IEC) (Optional) Support
• CWD (Optional) Support
• 1 probe port with micro-connector
• Rear handle
• User Interface
• Operator Keyboard
• Alphanumeric Keyboard
• Ergonomic Hard Key Operations
• Integrated Recording Keys for Peripheral and DICOM Devices
• 6 TGC Pods, with remapping functionality at any depth
• Backlight keys
• Display Screen
• 15 inch High-Resolution Color LCD – Display size: 1024 x 768
• Interactive Dynamic Software Menu
• Open Angle Adjustable
• –0to160°
• Integrated Speakers
• Brightness Adjustment
• Audio Volume Adjustment
